Overview

CryEngine supplies a number of Lua functions that operate on entities, defined in the Entity table. However, they are applied in object-oriented Lua fashion, i.e. called in the form:

golfball:SetWorldPos({x=0,y=0,z=0});


Creation/Deletion

To remove an entity from the system, call this:


DeleteThis()
request that this entity be deleted

Call System.SpawnEntity to create an entity.

Class

Every entity has an entity class. This can be accessed from a member of the entity:

class
the string class name of the entity

ID

Every entity has a globally unique ID, accessible as a member of the entity:

id
the entity ID of the entity. This is Lua userdata (opaque C++ data that cannot be inspected from Lua), so to print it, you need to convert it to a string using the Lua function tostring. For an example, see ARPrintEntity.

Lua bindings that take entities as parameters typically expect the entity ID, i.e. pass entity.id, not entity, e.g. the System entity functions.

There is one special entity ID constant:

NULL_ENTITY
ID for a null entity

Names

Every entity has a string name


SetName(name)
change entity name
GetName()
return name of entity
GetArchetype()
return archetype name of entity, nil if none
SetAIName(name)
set AI string name of entity
GetAIName()
return AI string name of entity

Flags

Each entity has a set of bit flags controlling various aspects of the entity, e.g. whether it casts a shadow.


SetFlags(flags, mode)
Set one or more entity flags
GetFlags()
return value - integer all the entity's bit flags
HasFlags(flags)
return value - boolean true if the entity has any flags set

Transform

You can set an entity's position and orientation.

ToLocal(slot, pos)
return world position converted to local position
slot specifies slot from which to obtain transformation, entity transformation if -1
examples - none
ToGlobal(slot, pos)
return local position transformed to world position
slot specifies slot from which to obtain transformation, entity transformation if -1
examples - none
SetWorldPos(vPos)
set the entity position, a vector in world coordinates
SetWorldAngles(vAngles)
set the world rotation, a vector
SetWorldScale(fScale)
set the world scale factor, a number
GetWorldPos()
return the entity position as a vector in world coordinates
GetWorldAngles()
return the entity rotation as a vector


GetWorldScale()
return the entity scale factor
SetPos(vPos)
same as SetWorldPos
GetPos()
same as GetWorldPos
SetAngles(vAngles)
same as SetWorldAngles
SetScale(fScale)
same as SetWorldScale


GetAngles()
return value - rotation


GetScale()
same as GetWorldScale
return value - scale factor

If the entity is attached to a parent (see next section), then you can set the local transformation relative to the parent

SetLocalPos(vPos)
set the local position
SetLocalAngles(vAngles)
Set the local rotation
SetLocalScale(fScale)
Set the local scale
GetLocalPos()
return the local position as a vector
GetLocalAngles()
return the local rotation as a vector
GetLocalScale()
return the local scale, a number

Another way to change the orientation is to set its direction (facing forward) vector.

GetDirectionVector()
return the forward direction, a vector
SetDirectionVector(direction, [up])
GetDistance(entityID)
returns the distance between this entity and another entity
entityID - entity ID of the other entity
example - Game/Scripts/Entities/Other/Switch.lua
GetBoneLocal()
IsEntityInside(EntityId)

The following are added by Avatar Reality:

SetWorldAA(rad,vec)
Set orientation by angle axis vector
SetWorldV0V1(v0,v1)
Set orientation by rotation from vector v0 to v1
SetWorldVDir(v)
Set orientation according to aim direction vector

Children

Entities can have entities as children - the parent-child relationship dictates that the child entity's local position and orientation are relative to that of the parent's. In other words, when the parent moves, the child entity moves along with it.


AttachChild(childEntityId, flags)
attach another entity as a child so child position and orientation will be offset (transformed) from that of this entity performs same function as the Link button in the Sandbox Editor
DetachThis(flags)
detach this entity from its parent
DetachAll(flags)
detach all children of this entity
optional attachment flags parameter
GetParent()
return parent entity, nil if none
GetChildCount()
return number of children
GetChild(nIndex)
return child entity at nIndex, a number
EnableInheritXForm(bEnable)
enable/disable inheritance of transform from parent

Hiding

Hide(dohide)
Hide or unhide the entity. When hidden, the entity is invisible and has physics disabled.
dohide - 0 specified don't hide, 1 specified do hide
example - Item.lua
IsHidden()
returns boolean indicating whether entity is hidden

Proxies

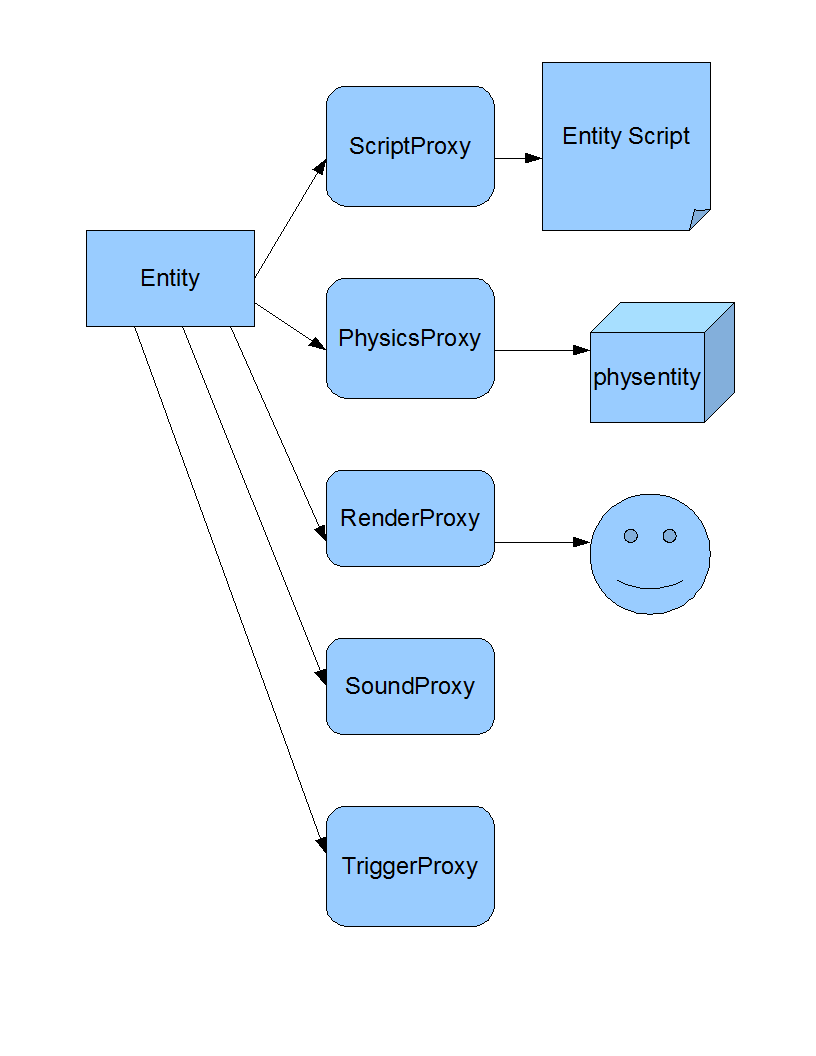

Various behaviors of entities are implemented through proxies.


Proxies are allocated and destroyed as necessary - in general, you don't have to deal directly with them, but sometimes they will be mentioned for completeness or clarity. For example, entity slots are actually implemented in the render proxy.

Slots

General

Every entity has a variable number of slots, each of which can contain a character model, fog volume, particle emitter, cloud, light, or static geometry. This allows an entity to switch among different visible representations.

For example, BasicActor.lua loads different character models in slots 0, 2 and 3 and a static model in slot 1.

Multiple slots can be visible at the same time. For example, we can display a molecule by loading an atom model (a sphere) in various slots. (note there is a 16k object limit in the renderer)



DrawSlot(slot, enable)
show/hide object loaded in a slot
slot - number of slot
enable - 0 hides the object, 1 shows the object


IgnorePhysicsUpdatesOnSlot(nSlot)


FreeSlot(nSlot)
clear slot, removing any object assigned to it
example - Golf
  • The Golf game removes a model from slot with self.ball:FreeSlot(self.cgfSlot);
  • The Golf game kills a particle effect with self.ball:FreeSlot(self.particleSlot);


GetSlotCount()


IsSlotValid(nSlot)
return value - boolean indicating whether nSlot is a valid slot index


The functions to load objects into slots vary according to the type of object and are described in different sections below, e.g. LoadObject and LoadCharacter.


Transform

Slots can have a transform relative to the entity's transform.

SetSlotPos(nSlot,vPos)
GetSlotPos(nSlot)
SetSlotAngles(nSlot,vAngles)
GetSlotAngles(nSlot)
SetSlotScale(nSlot,fScale)
GetSlotScale(nSlot)
CopySlotTM(srcSlot,destSlot,includeTranslation)
MultiplyWitSlotTM(slot, pos)
SetSlotWorldTM(slot, pos, dir)
GetSlotWorldPos(slot)
GetSlotWorldDir(slot)

Hierarchy

Slots can have parent-child relationships amongst themselves (in which case a transform are relative to the parent)


SetParentSlot(child, parent)
example - none


GetParentSlot(child)

Geometry

A slot can contain static geometry, which is loaded from a CGF file. To create CGF files, see:


IsSlotGeometry(slot)
returns true if slot contains static geometry (or a character), false if not
example - none
LoadObject(nSlo, sFilename)
Load static geometry (a cgf file) into the specified slot. Same as LoadCharacter if the file is chr/cdf/cga.
return value - returns the slot number if successful, nil if not
example - Golf/Perform Shot
self.ball:LoadObject(self.cgfSlot, "levels/ar/common/objects/golf/golf_ball_proxSphere.cgf");
LoadObjectLattice(entity slot containing static geometry)
use tetrahedral lattice from static geometry for entity physics
return value - returns slot number
example - BreakableObject.lua
LoadSubObject(nSlot, sFilename, sGeomName)
load subobject in static geometry (cgf) file into a slot
nSlot - entity slot
sFilename - geometry file
sGeomName - subobject name
DeformMesh(slot, point, radius, strength)
deform mesh for an explosion-impact style morph object
by Avatar Reality
status - untested
example - none


Material

General

Materials are defined in .mtl files in an XML format. They are exported during asset creation or edited with the Material Editor. Materials can have submaterials and layers.

References:

In addition to any materials included with objects loaded in an entity's slots (slot materials), an entity can have a custom material.


SetMaterial(material)
Set the entity custom material
GetMaterial(slot)
return the name of the entity custom material, if slot is not specified, or of the material on the object in the slot
ReplaceMaterial(slot, name, replacement)
replace the material in the entity slot with another material.
ResetMaterial(slot)
remove entity material. If the slot contains a character, also remove materials on any attachments.
CloneMaterial(nSlot)
set the material in a slot to a clone of itself

Material Parameters

SetMaterialFloat(nSlot, nSubMtlId, sParamName, fValue)
set material floating point parameter
GetMaterialFloat(nSlot,nSubMtlId,sParamName)
get material floating point parameter
slot - entity slot containing the material
ID - submaterial ID (value 0 for SubMtl[1], 1 for SubMtl[2], etc.); if invalid, use the default material
name - material parameter name
value - parameter value
example - Game/Scripts/Entities/AI/Aliens/Alien_x.lua, get the glow value of material
self.mtlBodyGlow = self:GetMaterialFloat(0,0,"glow");
SetMaterialVec3(nSlot,nSubMtlId,sParamName,vVector)
set material vector parameter
slot - entity slot containing the material
ID - submaterial ID (value 0 for SubMtl[1], 1 for SubMtl[2], etc.); if invalid, use the default material
name - material parameter name
value - parameter value
example - set the Diffuse Color to 127,127,127 for SubMtl[2]:
self:SetMaterialVec3(0,1,"diffuse",{x=.5,y=.5,z=.5});
GetMaterialVec3(nSlot,nSubMtlId,sParamName)
get material vector point parameter
slot - entity slot containing the material
ID - submaterial ID (value 0 for SubMtl[1], 1 for SubMtl[2], etc.); if invalid, use the default material
name - material parameter name
value - parameter value
SetPublicParam(name,param)
set shader parameter
example - none

Layers

Materials have an optional set of layers. The predefined layers can be seen in the Materials Editor.

EnableMaterialLayer(enable, layer)
enable/disable a material layer
enable - true to enable, false to disable
layer - one of the predefined layers,
MTL_LAYER_FROZEN
MTL_LAYER_WET
example - self:EnableMaterialLayer(true, MTL_LAYER_WET);

Flash

Flash movies can be used in materials just as they are in the HUD.

The procedure for assigning a Flash movie to a material is the same as that of assigning a video.


MaterialFlashInvoke(slot, materialId, textureSlot, methodName, ...)
Invoke an Actionscript method on the entity Flash material


MaterialFlashSetVariable(slot, materialId, textureSlot, variableName, value)
Set an Actionscript variable on the entity Flash material

Physics

See also general Physics functions.

Simulation

AddImpulse(partId, pos, dir, impulse, scale, angularImpulse, massScale)
GetVelocity()
return velocity vector of entity
GetSpeed()
return speed of entity, a number (magnitude of GetVelocity)
GetAcceleration()
return acceleration vector of entity
GetRotVelocity()
return rotational velocity of entity
GetRotAcceleration()
return rotational acceleration of entity
GetMass()
returns the mass of an entity
GetCenterOfMassPos()
returns the entity center of mass
GetGravity()
return gravity at this entity's position
GetSubmergedFraction()
return fraction of entity that is submerged
GetEnergy()
returns the energy of the entity
AddConstraint(params)

Raycasting

Also see more used function RayWorldIntersection in Physics

IntersectRay(slot, rayOrigin, rayDir, maxDistance)
examples - Game/Scripts/Entities/Other/GUI.lua

Volume

GetVolume(slot)
return volume of physical geometry in slot
slot - entity slot containing the geometry
example - Game/Scripts/Entities/Physics/PressurizedObject.lua


GetSubmergedVolume(slot, planeNormal, planeOrigin)
return volume of physical geometry in slot that is "below" the given plane

Physicalize

An entity's physical aspect must be generated from the contents of a slot


Physicalize(slot, type, params)
set physics parameters
IsPhysicalized()
checks if the entity has a physics proxy
PhysicalizeSlot(slot, physicsParams)
DestroyPhysics()
Destroys the physics of the entity
ResetPhysics()
reset dynamic state of eneity
AwakePhysics(nAwake)
if nAwake is 0, put physics for entity to sleep, if nAwake is 1, wake up physics for entity
EnablePhysics(bEnable)
Enable/Disable physical simulation
ActivatePlayerPhysics(bEnable)
no examples


SetPhysicParams(paramtype, params))
set physics parameters of entity
UpdateSlotPhysics(slot)


AwakeEnvironment()
examples - none

Collision

SetColliderMode(mode)
mode 0 for default collision, 1 to disable collision
example - Dynamic Object/Example
IsColliding()
returns true if entity is currently colliding with something, false otherwise
CheckCollisions
examples - none
GetTouchedSurfaceID
GetTouchedPoint
NoExplosionCollision()
remove geom_type_collision from physics flags
example - none
GetPhysicalStats()
return table of physics info, with the key-value pairs
gravity
mass
flags

Explosions

BreakToPieces(nSlot, nPiecesSlot, fExplodeImp, vHitPt, vHitImp, fLifeTime, materialEffects)

slot - slot containing the breakable object
slot - slot containing the pieces
explodeImpulse - explosion impulse
HitPt - point of impact, a vector
HitImp - impulse at hit point, a vector
lifetime - particle lifetime
materialEffect - true, to use material effects, false otherwise
example - Game/Scripts/Entities/Physics/DestroyableObject.lua, in the Explode function
GetExplosionObstruction
GetExplosionImpulse

Areas

An entity can have one or more areas linked to it, that each will detect when an entity with its ENTITY_FLAG_TRIGGER_AREAS flag set enters it. This is automatically true of avatars - for other entities that you want detected by areas, call SetFlags to set ENTITY_FLAG_TRIGGER_AREAS.

Each area forwards enter/leave events to the OnEnterArea or OnLeaveArea callbacks of any entities that are specified as targets.

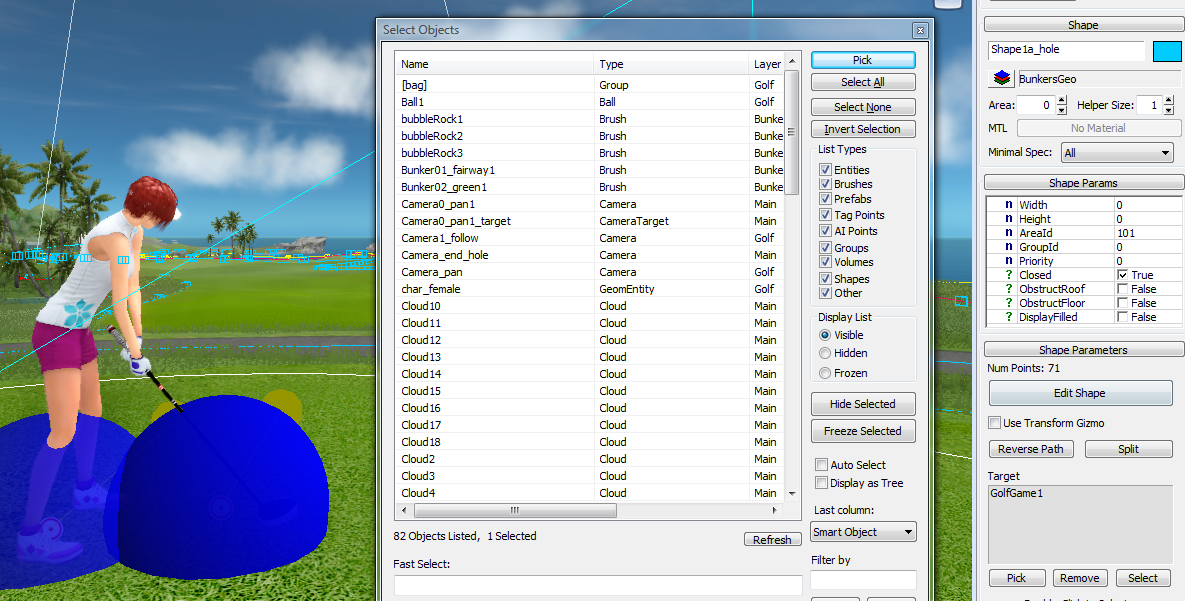

For example, here is a Shape Area with the minigame entity as its target.


Each area has an ID, which does not have to be unique (so you can use a single ID for several areas to treat them alike).

Tip: when new areas are placed in a level, save the level and re-launch the Editor to ensure the areas get recognized with the following API.

See the Areas section in the Sandbox Editor manual under References>User Interface>RollupBar>Objects Tab>Area.


IsPointInsideArea(areaId, point)
return value - true if point is within an area linked to this entity, false otherwise


IsEntityInsideArea(areaId, entityId)
return value - true if an entity is within an area linked to this entity, false otherwise


GetAreas()
returns a table of area ID's, corresponding to the areas linked to this entity.

Character

Overview

An entity slot can contain a character.

A character consists of a character model and an animation set.

The corresponding files:

  • CDF files contain a CHR file and corresponding CAL files
  • CHR files contain the skeleton and skin mesh
  • CAL files contain lists of animation (CAF) files
  • CAF (Crytek Animation Files) contain the animation keys

In general, a skeleton does not have to follow a bone-naming convention, and in fact does not even have to be human, but some features depend on the Crytek bone names.

The animation system can also play animations of articulated rigid geometry, exported as

  • CGA files - the geometry
  • ANM files - the animation files

Examples include vehicles and rope.

A character and rigid-body animations can be previewed and to some extent modified in the Character Editor.


References:

  • Asset Creation Manual - Exporting animations
  • Sandbox Manual - Animation graph reference (animation state parameters used in StartAnimationAR), Facial Editor tutorial, Character Editor reference (upcoming), LMG reference (upcoming)
  • Blue Mars Asset Creation - exporting animation using the Collada-Cry plugin

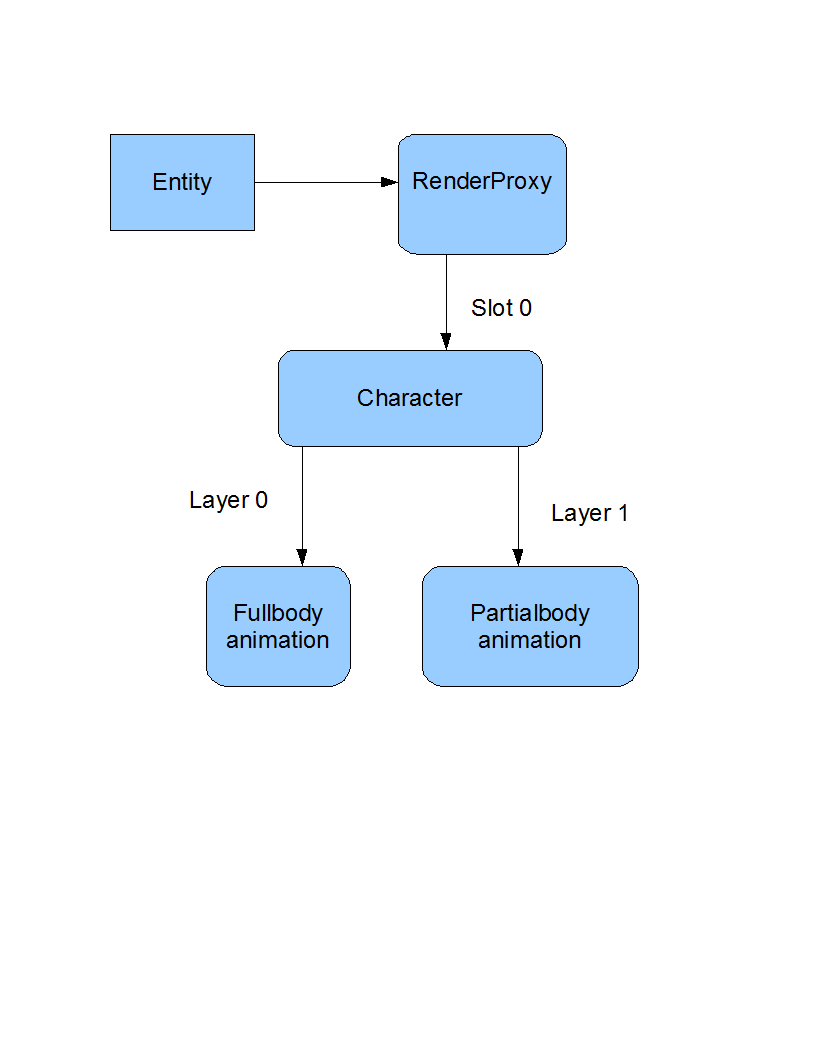

An entity can control character animation after the character (a CDF file) has been loaded into one of the entity slots (usually 0), via LoadCharacter.

The following character console variables assist in debugging characters:

  • ca_DrawCharacter - if 0, will not draw characters. Defaults to 1.
  • ca_DrawBBox - draws the bounding box of the rendered character
  • ca_DrawBodyMoveDir - draws the body and move direction
  • ca_DrawNormals - draws the normals of the rendered character
  • ca_DrawBinormals - draws the binormals of the rendered character
  • ca_DrawTangents - draws the tangents of the rendered character
  • ca_DrawWireframe - draws the wireframe of the rendered character
  • ca_DrawPositionPost - draws the world position of the character (after update)
  • ca_DrawPositionPre - draws the world position of the character (before update)

Loading a Character

LoadCharacter(nSlot, sFilename)
load an animated character into an entity slot
GetCharacter(slot)
returns pointer to the character in a slot
IsSlotCharacter(slot)
returns true if slot contains a character, false if not

Skeleton

Here are the standard bone names.

  1. "Bip01" (=Locomotion Locator)
  2. "Bip01 Pelvis"
  3. "Bip01 Spine"
  4. "Bip01 Spine1"
  5. "Bip01 Spine2"
  6. "Bip01 Spine3"
  7. "Bip01 Neck"
  8. "Bip01 Head"
  1. "Bip01 R Clavicle"
  2. "Bip01 R UpperArm"
  3. "Bip01 R ForeArm"
  4. "Bip01 R Hand"
  1. "Bip01 L Clavicle"
  2. "Bip01 L UpperArm"
  3. "Bip01 L ForeArm"
  4. "Bip01 L Hand"
  1. "Bip01 L Thigh"
  2. "Bip01 L Calf"
  3. "Bip01 L Foot"
  4. "Bip01 L Toe0"
  1. "Bip01 R Thigh"
  2. "Bip01 R Calf"
  3. "Bip01 R Foot"
  4. "Bip01 R Toe0"


just for Look-IK

  1. "Bip01 eye_left" (just procedural animation)
  2. "Bip01 eye_right"(just procedural animation)
GetBonePos(name)
returns the position of a bone, assumes character is in entity slot 0
name - name of the bone
GetBoneDir(name)
returns the forward position of a bone (in world space), assumes character is in entity slot 0
name - name of the bone
GetBoneVelocity(characterSlot, boneName)
returns the bone belocity
slot - entity slot containing the character
name - name of the bone
GetBoneAngularVelocity(characterSlot, boneName)
returns the bone rotational velocity
slot - entity slot containing the character
name - name of the bone
GetBoneNameFromTable(index)
return the name of a bone, assumes character is in entity slot 0
index - the bone index, an integer

The following console variables assist in debugging skeletons:

  • ca_DrawSkeleton - if set to 1, the skeleton is drawn. Defaults to 0.

Attachments

Each character has an attachment manager that maintains bone, skin and facial attachments. Attachments are identified by name (each attachment manager has one namespace for both bone and skin attachments, so you cannot use the same name for one of each).

Once an empty attachment (or "attachment socket") has been created, static geometry, a character, an arbitrary entity or particle effect can be bound to the attachment. The attachment (that is, anything bound to it), can be hidden or displayed.

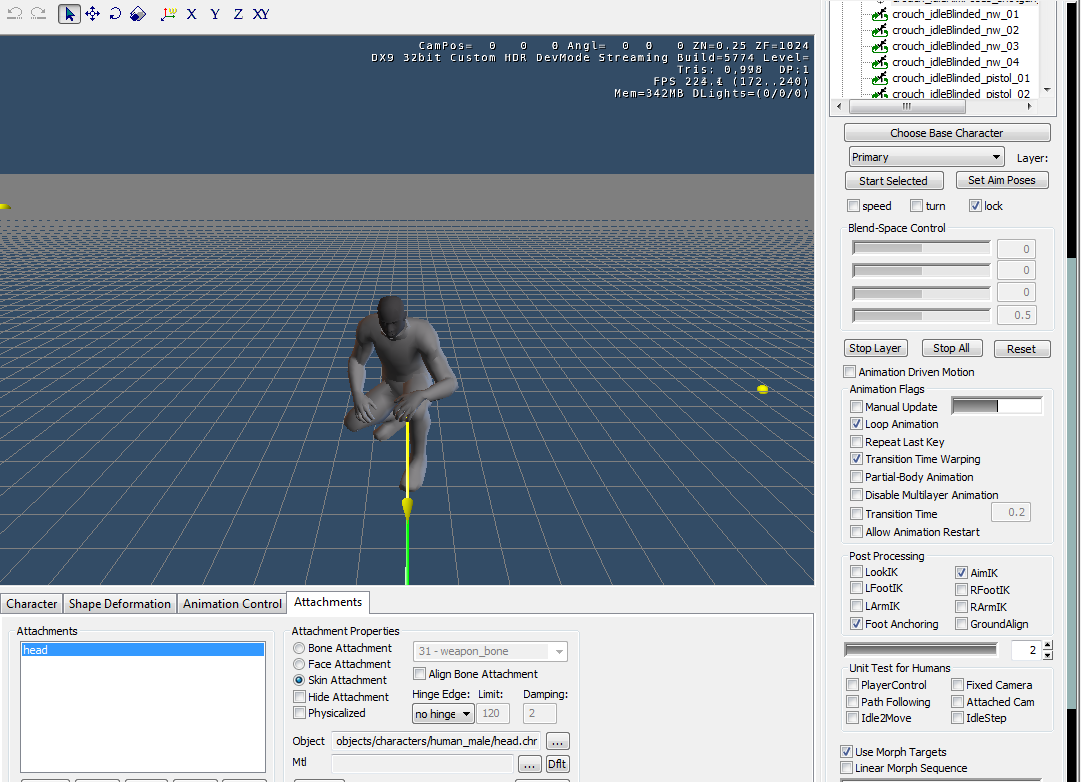

Attachments are documented in the Character Editor section of the Sandbox Editor Manual

Attachments can be set in the Character Editor or created with these script functions.

The following character console variables assist in debugging attachments:

  • ca_drawEmptyAttachments - set to 1 for draw boxes around empty attachments. Defaults to 0.
  • ca_DrawAttachmentOBB - draw attachment bounding boxes
  • ca_DrawAttachments - if 0, will not draw attachments. Defaults to 1.


CreateBoneAttachment(characterSlot, boneName, attachmentName)
creates a new bone attachment for a character, if attachment by that name doesn't exist already
CreateSkinAttachment(characterSlot, attachmentName)
create a new skin attachment for a character, if no attachment by this name exists
DestroyAttachment(slot, name)
removes an attachment from the character's attachment manager
GetAttachmentBone(characterSlot, attachmentName)
return the name of the attachment bone
GetAttachmentCGF(characterSlot, attachmentName)
return the pathname of the CGF file defining the attachment object, nil if no character, attachment or attached object
ResetAttachment(characterSlot, attachmentName)
remove anything bound to the attachment
SetAttachmentEffect(characterSlot, attachmentName, effectName, offset, dir, scale, flags)
attach a particle effect. Starts off hidden.
SetAttachmentObject(characterSlot, attachmentName, entityId, slot, flags)
attach the static geometry or character of another entity, or the entity itself if it has neither. Starts off hidden.
SetAttachmentCGF(characterSlot, attachmentName, filePath)
attach static geometry loaded from a file, starts off hidden
SetAttachmentMaterial(characterSlot, attachmentName, materialName)
SetAttachmentLight(characterSlot, attachmentName, lightTable, flags)
attach a new light, starts of hidden
SetAttachmentPos(characterSlot, attachmentName, pos)
set the attachment position, relative to the attachment point
SetAttachmentAngles(characterSlot, attachmentName, angles)
set the attachment orientation, relative to the attachment point
SetAttachmentDir(characterSlot, attachmentName, dir, worldSpace)
set the attachment direction
HideAttachment(characterSlot, attachmentName, hide, hideShadow)
Show/hide an attachment (everything bound to it)
HideAllAttachments(characterSlot, hide, hideShadow)
hide/show all attachments for a character
HideAttachmentMaster(characterSlot, hide)
enable/disable rendering of the character

Animation


Each character has a number of animation layers. Each layer acts as a queue, since each incoming animation can have a transitional blend duration with the previous animation, at the end of which the previous animation is removed. A queued animation can be accompanied by a second animation that is constantly blended with it.

Layers are numbered. Animations in higher layers by default will overwrite animations in lower layers. A typical usage is to play an upper-body animation in layer 1 and a full-body animation in layer 0, so the net result is the lower-body portion of layer 0 combined with the upper-body animation in layer 1. See the Exporting Animation section of the Sandbox Manual

Higher layer animations can also have a blend-in transitional period with lower layer animations. For example, the upper-body animation in layer 1 can gradually override the upper-body portion of layer 0.

Higher layer animations can also be constantly blended with lower layer animations. The two methods of mixing animations - blending two on a single layer or blending two on separate layers - each has its own advantages and disadvantages:

  • mixing on one layer allows you to vary the blend weight over time by calling SetIWeight and the second animation is "time-warped", i.e. stretched or compressed to match the primary animation. Also, there is currently a problem performing transitional blend-ins with dual animations on one layer
  • running the animations on separate layers allows you to control the two animation speeds and positions separately, with SetAnimationSpeed and SetAnimationTime, but doesn't allow variation of the blend-weight during the run of the animation.

In summary, the steps taken to process a character's active animations each frame:

  1. perform keyframe interpolation on each animation
  2. for dual animations blend the two using the specified weight
  3. perform transitional blending among animations on the same layer according to the specified transition time
  4. perform blending/overriding of the resulting animations on multiplayer layers

You can preview animations and experiment with blends and transitions using the Character Editor, documented in the Sandbox Manual

Details on the animation system are explained in the CryEngine Programming Manual


StartAnimation(characterSlot, animName, layer, blendTime, speed, loop, partial)
starts playing an animation. This is the function used in the standard CryEngine scripts. For more options, see StartAnimationAR.


StartAnimationAR(animName/Path, params)
starts playing an animation. Exposes more animation parameters than StartAnimation.


local animFile = "levels/ar/common/animations/human/" .. self.Bowler[i].player:GetAvatarBaseModel() .. "/minigames/bowling/ARBOWL_bowl_and_walkback.dba";
self.Bowler[i].player:StartAnimationAR(animFile, {blendTime=0, speed=1, loop=false});
GetAvatarBaseModel()
returns either Female00 or Male00 according to avatar gender.
As mentioned in the details of StartAnimationAR, this function is used to construct the animation path according to gender. An example is shown above.


The following functions operate on the current animation, i.e. the one at the front of the animation queue. Keep this in mind if you are blending animations, the most recent animation started might not be the one one that is "current".

SetIWeight(layer,weight)
sets the blend weight (or interpolation weight) for a layer that is playing an animation with a secondary animation
slot - entity slot containing the character (via LoadCharacter).
layer - layer on which the animation is playing
weight - blend weight in the range 0.0-1.0. 0 gives full weight to the primary animation, 1 gives full weight to the secondary aniamtion
GetIWeight(layer,weight)
returns the blend weight (or interpolation weight) for a layer
slot - entity slot containing the character (via LoadCharacter).
layer - layer on which the animation is playing


StopAnimation(slot, layer)
stops animations on one or all layers
slot - integer slot number in which the character is loaded
layer - integer animation layer. If -1, stop all layers


StopAnimationAR(params)
stops animations on one or all layers
params - table optional parameters
by Avatar Reality , last modified on 2/10/2008

the parameter table contains the following optional keys:

slot
character slot, defaults to 0
layer
animation layer, defaults to 0, -1 specifies all layers
blendOut
blendOut time, defaults to 0, used for multilayer animations


ResetAnimation(slot, layer)
stop and reset animation
slot - slot containing character
layer - animation layer. If -1, reset all layers
GetAnimationTime(slot, layer)
return play time of animation in seconds
nSlot - number of slot containing character (usually 0)
nLayer - number of animation layer (usually 0)
examples - used to pause animationin AnimObject.lua
SetAnimationTime(slot,layer,time)
set current play time of animation
slot - number of slot containing character
nSlot - number of slot containing character (usually 0)
nLayer - number of animation layer
fTime - number of seconds to set as current animation time
examples - used to restore current point of animation in AnimObject.lua
SetAnimationSpeed(slot, layer, speed)
set animation speed
slot is slot containing character
layer is animation layer
speed is animation speed, 0 for stop, 1 for normal
examples - AnimObject.lua
GetAnimationSpeed(slot, layer)
returns the animation speed
slot - slot containing character
layer - animation layer
GetAnimationLength(slot, animation)
returns animation lengths in seconds
characterSlot is the slot number of the character
animation is the animation name
examples - typically used in conjunction with SetTimer to trigger behavior when an animation is finished playing
EnableBoneAnimation(slot, layer, boneName, enable)
slot - number of slot containing character
no examples
EnableBoneAnimationAll(slot, layer, enable)
slot - number of slot containing character
no examples
ForceCharacterUpdate(slot, alwaysUpdate)
slot - number of slot containing character
CharacterUpdateAlways(slot, alwaysUpdate)
slot - number of slot containing character
CharacterUpdateOnRender(slot, bUpdateOnRender)
slot - number of slot containing character
IsAnimationRunning(slot, layer)
slot - number of slot containing character


ARAvatarAction

These entity.ARAvatarAction functions send a sync signal to the server (so the walk/idle will be started on all clients, not just locally). They can be used in-city where an ARDefaultCamera exists, but not in an independent minigame level (such as Golf, which handles the avatar spawning in the minigame script rather than using the standard spawning/sync'ing).

ARAvatarAction:StartIdle() - start automatic idle animation, sends a sync signal to the server

Example: avatar_ent.ARAvatarAction:StartIdle();

ARAvatarAction:StartWalk(destPos) - start walking to a location, sends a sync signal to the server

destPos - vector position of the walk-to location
Example: avatar_ent.ARAvatarAction:StartWalk(vPos);


Look IK

During each frame, after the data-driven animation, optional procedural animations take place, starting with look IK.


SetLookIK(slot, FOV, target)
turn the character head to look at a target
slot - number of slot containing character
FOV -
target - position vector of the target
ClearLookIK(slot)
slot - number of slot containing character

The following console variables are relevant:

  • ca_DrawLookIK - set to 1 to for a debug display of the look direction, default is 0.
  • ca_eyes_procedural - set to 1 to enable procedural eyes animation, default is 1.

Aim IK

SetAimIK(slot, target)
slot - number of slot containing character
ClearAimIK(slot)
slot - number of slot containing character

The following console variables assist in debugging:

  • ca_AimIKFadeout - if set to 0, Aim-IK will not fade out when aiming in extreme directions

Foot Anchoring

See also the footplant setting in the CBA File section of the Sandbox Editor Manual

SetFootAnchoring(slot)
slot - number of slot containing character
ClearFootAnchoring(slot)
slot - number of slot containing character

The following console variables assist in debugging foot anchoring:

  • ca_FootAnchoring - set to 1 to draw debug boxes around the feet
  • ca_DrawFootPlants - set to 1 to draw debug boxes around the footplants
  • ca_DebugFootPlants - set to 1 to print debug text

Recoil

ApplyRecoilAnimation(slot,duration,impact)
slot - number of slot containing character
duration - duration (in seconds) of the recoil animation
impact

Facial Animation

Facial animations are morph-based animations. They can be previewed in the Character Editor and edited in the Facial Editor.

EnableProceduralFacialAnimation(enable)
enable/disable procedural facial animation
example - DeadBody.lua disables procedural facial animation before playing a death pose facial animation
PlayFacialAnimation(name, looping)
Play facial animation
name is name of the facial animation
looping is ignored
example - DeadBody.lua plays a random death pose facial animation


The following console variables assist in debugging:

  • ca_DebugFacial - debug facial playback info
  • ca_DebugFacialEyes - debug facial eyes info

Physics

RagDollize(slot)
turn character in slot into a ragdoll (does not apply to avatar)
slot - entity slot containing the character
example - RagDollize flow event handler in BasicEntity.lua
SetCharacterPhysicParams(slot,rootBoneName,paramtype,params)
set character physics parameters
slot - entity slot containing the character
name - name of the root bone
paramType - the physics parameter type, same options as SetPhysicParams
params - the phycis parameters, same options as SetPhysicParams
example - Game/Scripts/Entities/Rope.lua
AwakeCharacterPhysics(nSlot,sRootBoneName,nAwake)
activate physics on a character
slot - entity slot containing a character
name - name of the root bone
awake - 1 to wake, 0 to sleep

Console Variables

See Console/Character for console variables that affect characters


Avatar

Enabling/Disabling user movement

EnableMove(bEnable)
bEnable - bool to enable/disable movement via mouse click or forward key (W or up arrow) actions
example - in the Elevator and Bowling scripts, user navigation is temporarily disabled with avatar_ent:EnableMove(false);


EnableClickMove(bEnable)
bEnable - bool to enable/disable click movement via mouse click only (allowing WASD/arrow navigation)
example - MMO:GetLocalAvatarEntity():EnableClickMove(false);

Camera

CreateCameraProxy()
creates a camera proxy for this entity

For custom cameras, it is recommended to attach a View to an entity. See Cameras for an explanation and examples.

Light

An entity can load a light into a slot. This is how the CryEngine light entities are implemented. See Game/Scripts/Entities/Lights/Light.lua

Notes:

  • the other light entity scripts there are obsolete
  • Light.lua has properties for optional geometry, but seems to rely on calls to LoadGeometry which is a non-existent function.

To implement a custom light, consider copying one of the standard light scripts and modifying it for a new light entity. For example, a light entity that changes its radius over time would have an OnUpdate callback that calls LoadLight with updated parameters.

For additional description of light entities and their properties, see the Sandbox Manual


LoadLight(nSlot, tLightDescription))
load light into slot


IsSlotLight(slot)
return value - boolean true if slot contains a light, false if not

Particles

An entity slot can contain a particle effect. An example is the ParticleEffect entity - see Scripts/Entities/Particles/ParticleEffect.lua

To control particles not attached to an entity, see Particles


LoadParticleEffect(nSlot, sEffectName, params)
Load a particle effect by name into an entity slot (-1 indicates take the next available)
PreLoadParticleEffect(sEffectName)
Called to speed up LoadParticleEffect - ensures that the effect file has been loaded
IsSlotParticleEmitter(slot)
returns true if slot contains a particle emitter, false if not
AttachSurfaceEffect(nSlot, effect, countPerUnit, form, type, countScale, sizeScale)
example - none

Fog Volume

An entity slot can contain a fog volume (i.e. volumetric fog). This is how the standard fog volume entity is implemented, in Game/Scripts/Entities/Render/FogVolume.lua.

Like clouds, a fog volume is defined in an XML file.

See the Sandbox Manual for a description of the fog volume entity.

LoadFogVolume(nSlot,tFogVolumeDescription)
FadeGlobalDensity(nSlot,fFadeTime,fNewGlobalDensity)
LoadVolumeObject(nSlot,sFilename)
SetVolumeObjectMovementProperties(nSlot,tVolumeObjectMovementProperties)

Cloud

An entity slot can contain a cloud. This is how the standard Cloud entity is implemented, in Game/Scripts/Entities/Render/Cloud.lua.

Clouds are described in XML files created by the Cloud Tool.

See the the Sandbox Manual for an explanation of cloud entities and the cloud tool.


LoadCloud(slot, file)
load cloud into slot
slot - entity (render proxy) slot
file - pathname of the cloud XML file


SetCloudMovementProperties(slot, properties)
set cloud movement properties from a table
slot - entity slot containing cloud
properties - table of properties, same parameters as in a cloud XML file

Helpers

Helpers are placeholders, exported as dummy objects from 3DSMax (in the case of skeletons, bone names are used). For example, they are used for driver positions in vehicles.

GetHelperPos(helper,useObjectSpace)
return the vector position of the helper. Searches all slots for the first name that matches.
helper is the name of the helper
useObjectSpace optional argument - if true specifies to return the position in the entity object object space, world space otherwise. Defaults to false.
example - VehicleBase.lua, used to return seat position
GetHelperDir(helper,useObjectSpace)
return the vector position of the helper. Searches all slots for the first name that matches.
helper is the name of the helper
useObjectSpace optional argument - if true specifies to return the position in the entity object object space, world space otherwise. Defaults to false.
example - VehicleBase.lua, used to return seat position
GetSlotHelperPos(slot, helperName, objectSpace)
return the vector position of the helper in the specified slot
slot - entity slot containing the object
helper is the name of the helper
useObjectSpace optional argument - if true specifies to return the position in the entity object object space, world space otherwise. Defaults to false.
example - none

Flowgraph

See Entity Script for details on how to specify flow node inputs for an entity.


ActivateOutput(port, value)
send a value to a flow node output port


ProcessBroadcastEvent()

Triggers

Entities can behave as area (more accurately, volume) triggers. When a collision is detected with the entity's trigger bounding box, the entity's OnEnterArea callback is invoked. When an object leaves the bounding box, the the OnLeaveArea callback is invoked. This is how the standard trigger entities, in Game/Scripts/Entities/Triggers, are implemented.


SetTriggerBBox(min, max)
sets the entity trigger bounding volume
GetTriggerBBox()
returns two values, the min and max points of the trigger bounding box, as set by SetTriggerBBox
InvalidateTrigger()
resets the entity trigger, so any objects currently within the trigger bounding box register as colliding
ForwardTriggerEventsTo(entityId)
forward trigger events to another entity

Script

Lua control over Entity Scripts

Update

You can control if and how often the OnUpdate callback for an entity script is called, effectively enabling/disabling the script or tuning the update frequency for performance.


UnSeenFrames()
Activate(bActive)
pass 1 to turn on calls to OnUpdate, 0 to turn off
IsActive()
returns bool indicating whether OnUpdate is called.
SetScriptUpdateRate(nMilliseconds)
Specify interval between calls to OnUpdate
SetUpdatePolicy(policy)
specify OnUpdate according to the specified policy

State

Use these functions to query and transition among entity script states:


GotoState(sState)
trigger a state transition
IsInState(sState)
Returns true if entity is currently in state sState.
GetState()
Returns name of current state

Timer

An entity can set internal timers (only visible to itself) that trigger its own OnTimer callbacks.

SetTimer(timerId, delay)
Start a timer.
KillTimer(timerId)
Deactivate timer with timerId

Sound

Sounds can be attached to an entity, following the entity's position (with an offset, if specified).

Sound completion is signalled with the Callback/OnSoundDone callback.

To play sounds not attached to an entity, see the Sound functions.


PlaySound(ID)
plays a sound, attaching it to this entity


PlaySoundEvent(sSoundOrEventName, vOffset, vDirection, nFlags, nSemantic)
play a sound event - same as the Sound function Play but attached to this entity


PlaySoundEventEx(name, nSoundFlags, nVolume, vOffset, fMinRadius, fMaxRadius, nSemantic)
play a sound event - same as the Sound function PlayEx but attaches to this entity
SetSoundSphereSpec(soundId, radius)
set spherical sound radius for an attached sound
ID - ID of the attached sound
radius - new radius of the sound
example - none
SetStaticSound(soundId,static)
specifies whether a sound attached to this entity is static (see StopSound)
ID - ID of the sound
static - true makes this sound static, false non-static
example - none
StopSound(ID)
stop playing sound attached to this entity, remove if non-static
no return value
ID - ID of the sound
example - Game/Scripts/Entities/Sound/SoundSpot.lua
StopAllSounds()
stop all sounds attached to this entity
no return value
example - Game/Scripts/Entities/Physics/DestroyableObject.lua
PauseSound(ID,pause)
pause a sound attached to this entity
no return value
ID - ID of the sound
pause - true to pause, false to unpause
example - none
SetSoundEffectRadius(fEffectRadius)
set sound effect radius for this entity - affects all attached sounds
radius - a float
example - Game/Scripts/Entities/Sound/AmbientVolume.lua

Links

An entity can refer to a number of other entities via links (an alternative is to call System.GetEntityByName).

Links can be created and have their targets set to other entities in the entity properties panel typically on the right side of the Sandbox Editor.


Note that this is not to be confused with the Link button in the Sandbox Editor - that is equivalent to AttachChild


CreateLink(name)
create a link
name - name of the link


SetLinkTarget(name, targetId)
Same as the Set Link Target option in the Sandbox Editor


GetLinkTarget(name)
return value - target of the link
name - string name of the link


RemoveLink(name)


RemoveAllLinks()


GetLink(idx)
return value - target of the link
idx - link index, starting with 0 at the bottom of the list


CountLinks()

Render

Bounding Box

The entity has a render bounding box.


SetLocalBBox(min, max)
set the bounding box in local coordinates
GetLocalBBox()
returns the min and max coordinate of the bounding box in local coordinates
GetWorldBBox()
returns the min and max coordinate of the bounding box in world coordinates
GetProjectedWorldBBox()
returns the min and max coordinate of the bounding box in screen coordinates

View Distance

These functions control the view-distance of an entity

GetViewDistRatio()
examples - none
SetViewDistRatio(ratio)
adjust max view distance settings
ratio - new view distance raio, if 100, max view distance is used
examples - none
SetViewDistUnlimited()
makes entity visible at any distance
examples - none

LOD

GetLodRatio()

examples' - none

SetLodRatio(ratio)
adjust LOD distance settings
ratio - if 100, max LOD distance is used
examples - none

Decals

An entity can render decals.

RemoveDecals()
remove all entity decals

Example, Game/Scripts/Entities/Others/Fan.lua, removes decals in Explosion function

EnableDecals(slot, enable)
enable rendering of decals on a character
slot - entity slot containing a character
enable - true enables decal rendering, false disables

Example, Game/Scripts/Entities/actor/BasicActor.lua enables decals

AI

Typically used in conjunction with AI functions.

Events

TriggerEvent

Pipes

SelectPipe
InsertSubpipe
CancelSubpipe
IsUsingPipe

Console

See Console/Entity for console commands and variables that relate to the entity system.

Problems with this wiki page? Contact us either by: Support Email or Support Ticket System

Blue Mars Guidebook Privacy Policy
Blue Mars Guidebook Community Guidelines

Retrieved from "http://create.bluemars.com/wiki/index.php/Entity"
Personal tools
